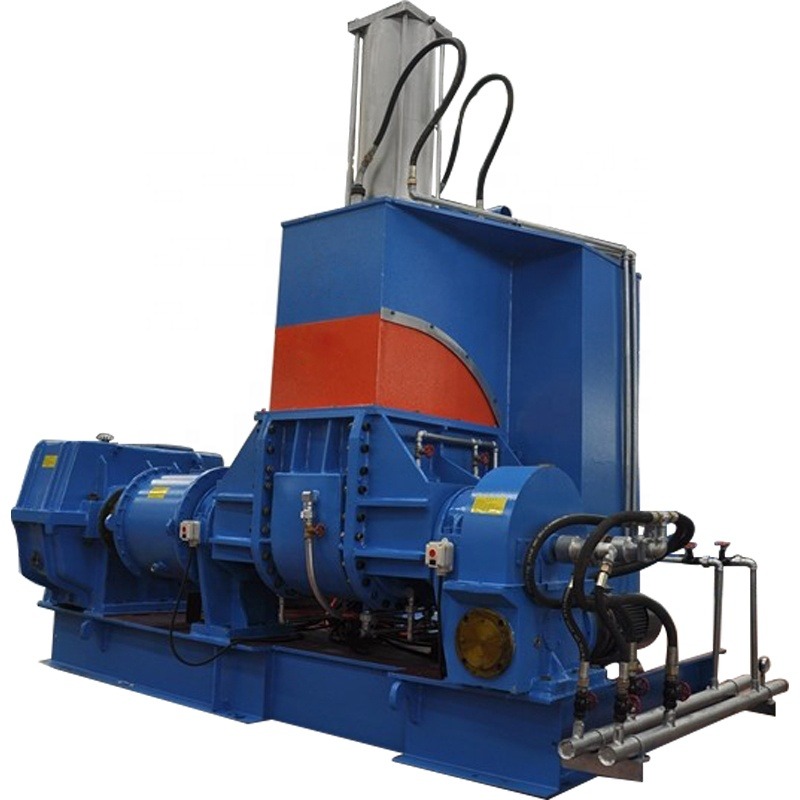

Rubber raw material machinery 150l rubber dispersion kneader

Product Description

The series of rubber kneader machine is a type of dispersion kneader, consist of pneumatic control system, electric control system, tilting mechanism, mixing chamber, main driving system, dust sealing device, thermal resistance, rotor and cooling/heating system. You can choose the right model according to your needs. Below is the main technical parameters of the models:

Model	X(S)N- 10X32	X(S)N- 20X32	X(S)N- 35X30	X(S)N- 55X30	X(S)N- 75X30	X(S)N- 110x30	X(S)N- 150x30
Total volume of mixing chamber	25L	45L	75L	125L	180L	250L	325L
Working volume of mixing chamber	10L	20L	35L	55L	75L	110L	150L
Driving motor power	15KW	30KW	55KW	75KW	110KW	185KW	220KW
Tilting motor power	1.1KW	1.5KW	2.2KW	2.2KW	4KW	4KW	5.5KW
Tilting angle	140°	140°	140°	140°	140°	140°	140°
Rotational speed of the rotor (front/rear)	32/23.5 r/min	32/25 r/min	30/24.5 r/min	30/24.5 r/min	30/24.5 r/min	30/24.5 r/min	30/24.5 r/min
Pressure of compressed air	0.5-0.8 MPa	0.5-0.8MPa	0.5-0.8MPa	0.6-0.8MPa	0.6-08MPa	0.6-0.8MPa	0.6-0.8MPa
Capacity of compressed air	≥0.5m³/min	≥0.7m³/min	≥0.9m³/min	≥1.0m³/min	≥1.0m³/min	≥1.5m³/min	≥2.0m³/min
Pressure of cooling water	0.2-0.4 MPa	0.2-0.4MPa	0.3-0.4MPa	0.3-0.4MPa	0.3-0.4MPa	0.3-0.4MPa	0.3-0.4MPa
Pressure of heating steam (plastic mixing)	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa
Overall dimension	2580X1300 X2280mm	2630X1520 X2550mm	3200X1900 X2950mm	3280X1930 X3070mm	3330X2620 X3340mm	3930X3000 X3660mm	4200X3300 X3900mm
Weight	3300Kg	4500Kg	6500Kg	7800Kg	10500Kg	14500Kg	19500Kg

Product display

Product details

Application

The series of rubber kneader machines are main used for molding and mixing the materials of natural rubber, synthetic rubber, recycled rubber or plastic, or blending rubber and plastic. They are also suitable for mixing a variety of low viscosity materials.
